Spring nitrates testing

What we are doing

We are testing the water in a spring on Bunz Steam, Te Kuru, for nitrate-nitrogen levels. Quarterly, starting September 2024, we take a water sample from this spring on Bunz Stream to Hills Lab which tests the sample for nitrate-nitrogen .

For reference, the graph shows guideline values from the National Policy Statement – Freshwater Management (NPS-FM) and from the Environment Canterbury Land and Water Regional Plan for Cashmere Stream for which Bunz Stream is a tributary, set in 2019.

The results are recorded here as a longitudinal record for this site as a means of monitoring the quality of water entering the headwaters of the Ōpāwaho-Heathcote River Network.

Be aware that the Christchurch City Council conducts a comprehensive water quality testing programme along all principal waterways.  Results of the CCC testing can be viewed here.  The CCC testing point closest to this spring is Heathcote at Sutherlands Road.  Test results at this point for nitrate-nitrogen are similar but not identical to our test results which is to be expected.

Bunz Spring
The tested spring on Bunz Stream, Te Kuru wetlands.

Test results

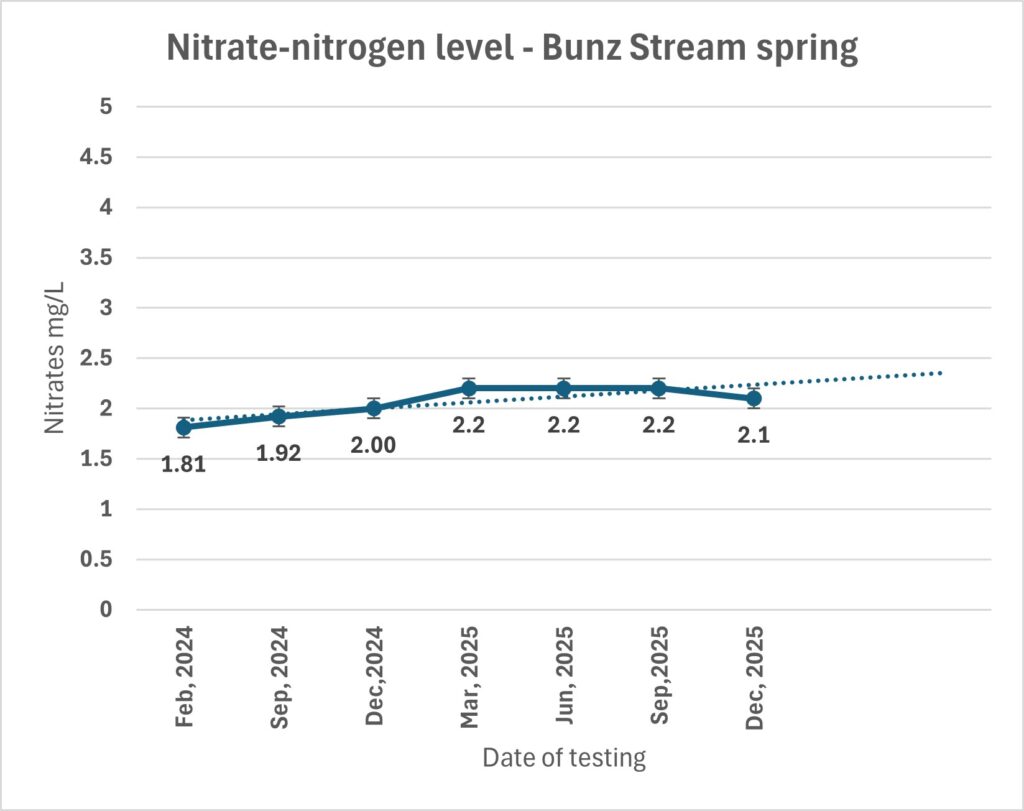

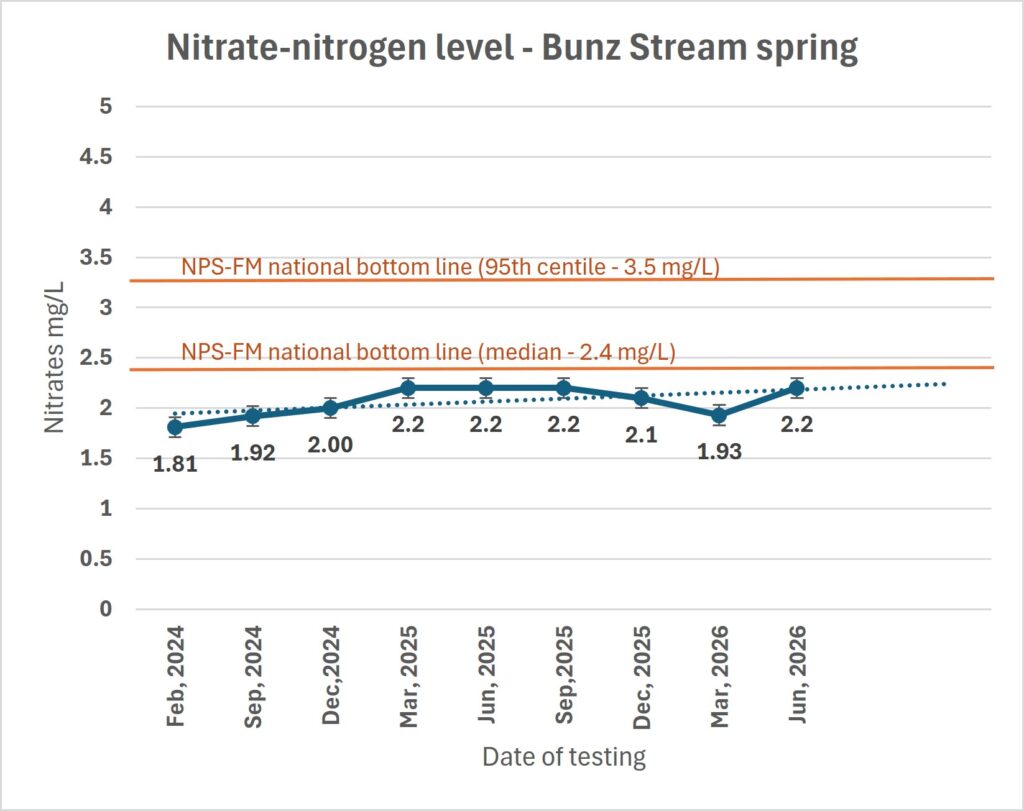

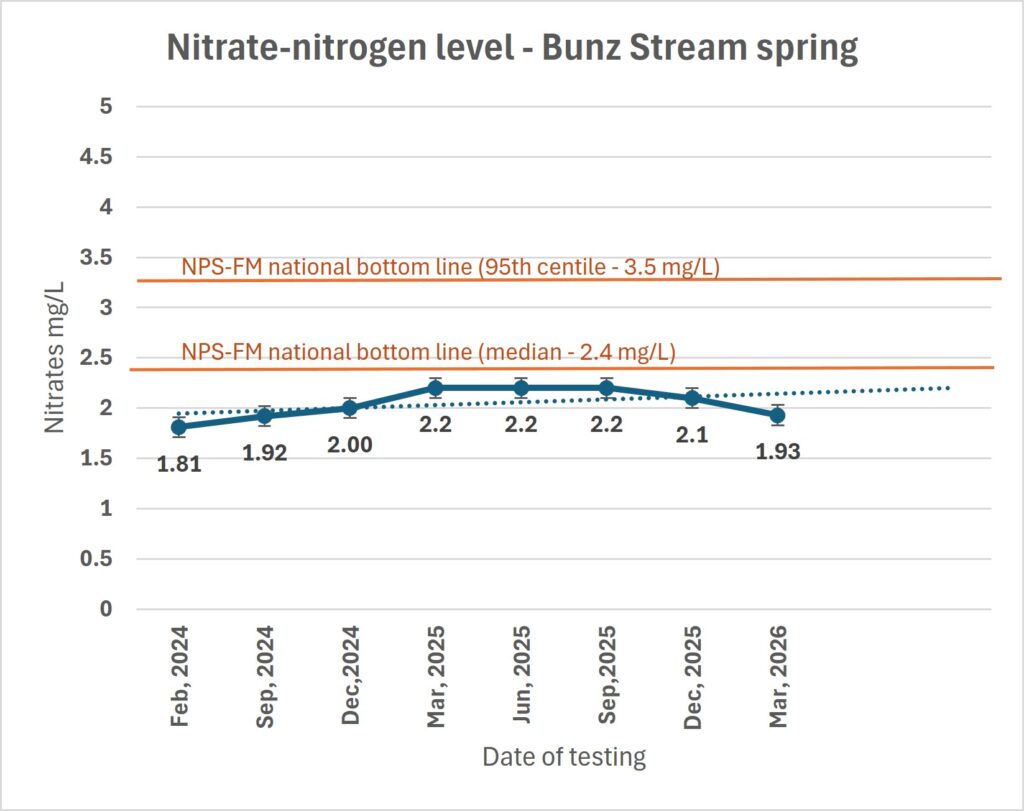

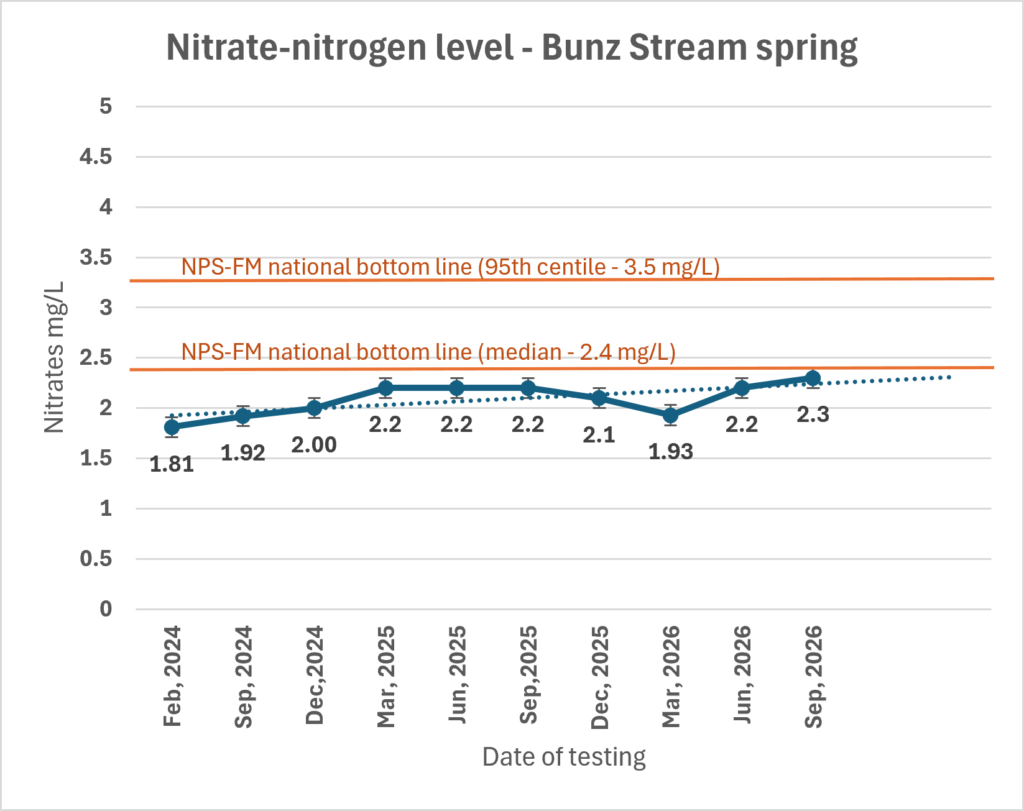

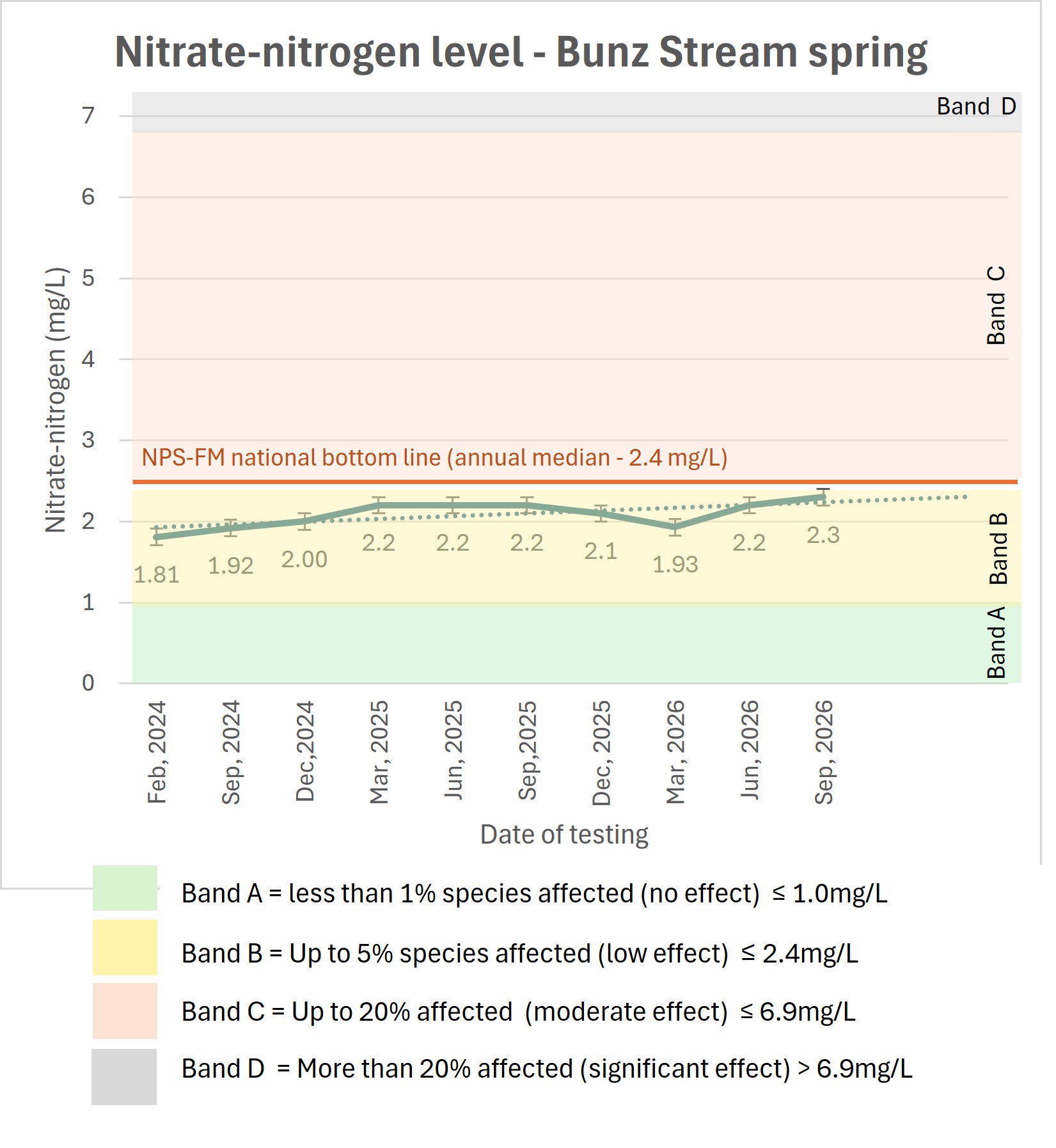

The graph shows all results to date (with tolerance levels of 0.002 mg/L for each test indicated) as well as a linear trend forecast over all the results since the testing began. Note: Trends are unreliable with small sample numbers.

Graphof nitrates test results

mg/L

Lowest value

1.81

Highest value

1.92

Median value

1.87

Nitrates in groundwater

Nitrate is the most widespread groundwater contaminant in the world, contributing to algal blooms and posing a human health hazard to drinking water. Nitrate can also threaten the ecological health of surface water bodies like streams, rivers and lakes. If groundwater has high nitrate-nitrogen concentrations, any surface water fed by groundwater springs will also have high concentrations.

How much is too much?

Ecological health: Ecological studies have shown that above 1.0 mg/L the environmental quality of stream habitats is affected and biodiversity begins to decline. Levels above 1.0 mg/L cause excess plant and algae growth and can be toxic to fish or aquatic invertebrates.

Drinking water: The Maximum Acceptable Value (MAV) has been set at a nitrate-nitrogen concentration of 11.3 mg/L. Some studies have suggested that there are human health risks at concentrations much lower than the MAV. A level between 0 and 1 mg/L is the optimum result for drinking water.

How does nitrate enter groundwater?

Nitrate is highly soluble in water. As it forms in soil from the decay or oxidation of other nitrogen compounds, nitrate dissolves readily into the water in the soil pores. From there, plants can draw the nitrate in through their roots and use it to build proteins and amino acids that they need to grow. However, if there is more nitrate present than the plants can take up, the excess remains in the soil. Then, when it rains, that nitrate is washed, or leached, downward through the soil and into the underlying groundwater.

Therefore, nitrate contamination of groundwater occurs as a result of excess nitrate in the soil. This might be a result of excess application of fertiliser or farm effluent. It can also result from animal urine, human wastewater, or soil cultivation.

Does nitrate occur naturally in groundwater?

Nitrate is a natural chemical and it does occur naturally in groundwater, but generally at low concentrations. Estimates of natural nitrate-nitrogen concentrations in New Zealand groundwater range from as low as 0.25 mg/L to as high as 3.5 mg/L.



Click here to read about the ecological baseline survey of this spring

What is nitrate-nitrogen?

The term ‘nitrate-nitrogen’ refers to the nitrogen portion of the total nitrate in a sample. Nitrate is a common, naturally occurring chemical compound made of the elements nitrogen (N) and oxygen (O). It is an important source of the nitrogen that is essential for plants to grow. Nitrate is derived from the decay of organic material in soil and animal plant waste, and it can also be manufactured as nitrogen fertiliser.

For environmental monitoring, scientists commonly record nitrate concentrations as nitrate-nitrogen so that they can compare the values to nitrogen in other forms that might also be present, such as ammonia nitrogen, organic nitrogen, or nitrogen gas.

Where is this spring on Bunz Stream?

The spring is on the edge of the Te Kuru retention basin system and is best accessed from the small footbridge near the end of Bunz Road, before reaching Beamsgate Road.

Bunz Spring
